Multispectral Cameras

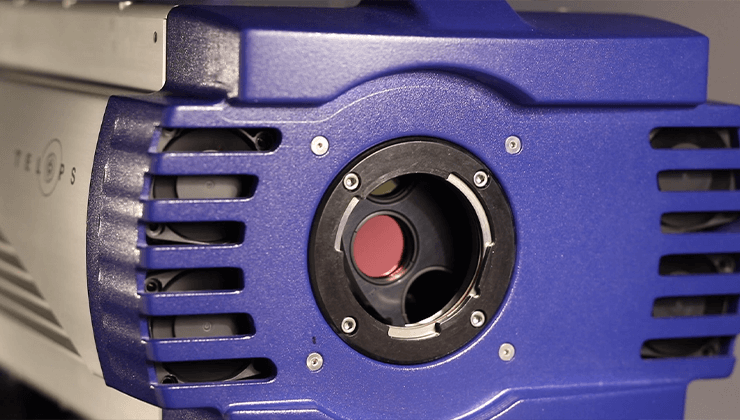

Telops multispectral infrared cameras are equipped with a fast-rotating, 8-position filter wheel that enables splitting of the scene signal into discrete spectral bands that can be used to analyze the spectral signature of the target or scene. The filter wheel mechanism is designed to maximize camera frame rate and allows for image acquisition at up to 800 Hz in synchronized mode (100 Hz per channel simultaneously) or up to the full frame rate capabilities of the camera in fixed-position mode.

Key Benefits

8-position filter wheel

The fast-rotating filter wheel can spin at up to 800 Hz, providing 100 Hz capability for each of the 8 channels.

Easy multichannel imaging

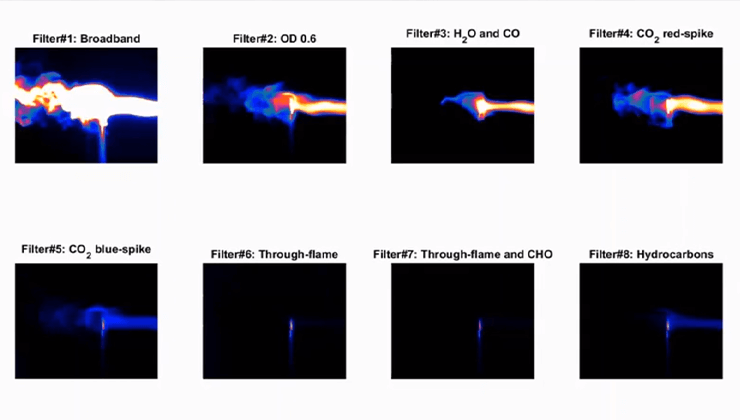

Get multichannel imaging in one easy take.

Dual Use

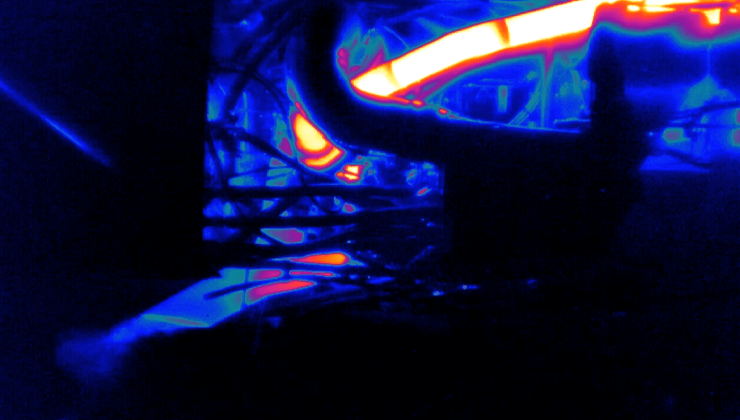

The MS Camera can be used with a fixed filter wheel or in fast-rotating mode. (Image: Plane engine viewed with fixed wheel)

Examples of applications

Volcanology

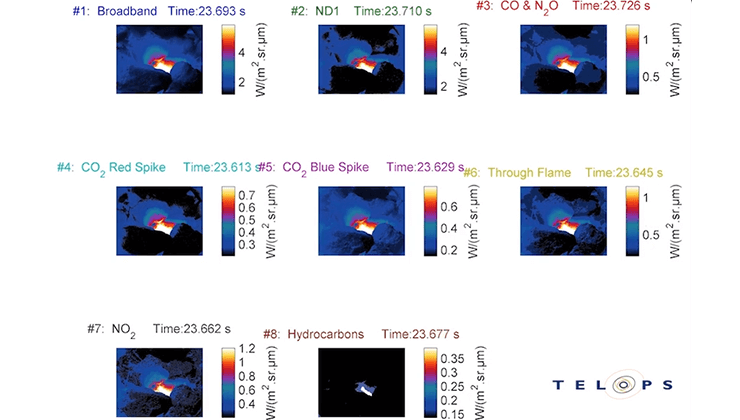

Volcanic carbon dioxide (CO2) emission rates play an important role for assessing volcanic hazards and for understanding the role of magma degassing in the biogeochemical cycle of carbon. Here you can see the multispectral IR imaging of volcanic passive degassing at Sulphur Banks, in Hawaii. A variety of spectral bandpass filters were used, including CO2 filters. Data was acquired at relatively high spatial resolution, leading to the successful identification and quantification of emitted carbon dioxide.

Combustion Analysis

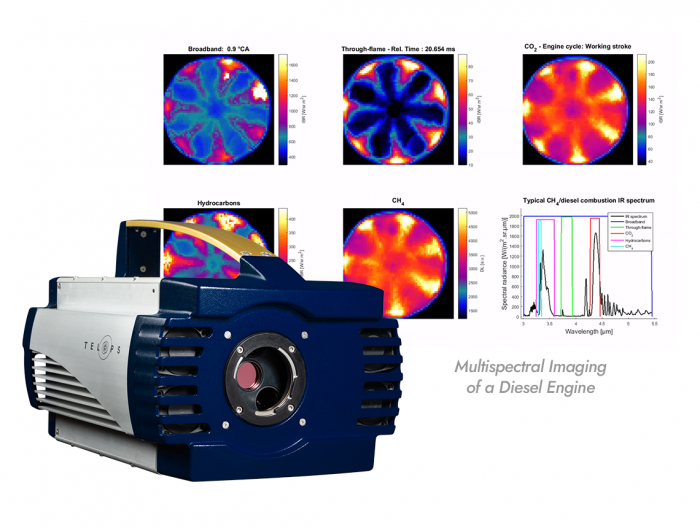

Go through the 4 stages of combustion of a dual-fuel engine — the intake, the compression, the working stroke and the exhaust — and observe them through 5 different infrared spectral bands. Courtesy of Istituto Motoro (CNR), Italy.

	Spectral range (µm)	Detector Type	Maximum Full Frame Rate (Hz)	Maximum Frame Rate in Subwindow (Hz)	Spatial Resolution (px)	Pixel Size (µm)	Number of Filters
MS M100hd	1.5 - 5.4	InSb	105	2900	1280 x 1024	15	8
MS M100hd (Opt.)	3 - 5 (Opt.)	InSb	105	2900	1280 x 1024	15	8
MS M1K	1.5 - 5.4	InSb	1012	40000	640 x 512	25	8
MS M1K (Opt.)	3.0 - 5.0 (Opt.)	InSb	1012	40000	640 x 512	25	8
MS M2K	1.5 - 5.4	InSb	1900	90000	320 x 256	30	8
MS M2K (Opt.)	3.0 - 5.0 (Opt.)	InSb	1900	90000	320 x 256	30	8
MS M2K UD	1.5 - 5.4	InSb	1500	42000	640 x 512	25	8
MS M2K UD (Opt.)	3.0 - 5.0 (Opt.)	InSb	1500	42000	640 x 512	25	8
MS M350	1.5 - 5.4	InSb	355	4980	640 x 512	15	8
MS M350 (Opt.)	3.0 - 5.0 (Opt.)	InSb	355	4980	640 x 512	15	8
MS M3K	1.5 - 5.4	InSb	3100	100000	320 x 256	30	8
MS M3K (Opt.)	3.0 - 5.0 (Opt.)	InSb	3100	100000	320 x 256	30	8
Midwave Series

	Spectral range (µm)	Detector Type	Maximum Full Frame Rate (Hz)	Maximum Frame Rate in Subwindow (Hz)	Spatial Resolution (px)	Pixel Size (µm)	Number of Filters
MS V1K	7.5 - 11.5	SLS	1012	40000	640 x 512	25	8
MS V350	7.5 - 11.5	SLS	345	14000	320 x 256	30	8
Very Long Wave Series

25-mm lens

For wide-field-of-view applications.

50-mm lens

For medium-field-of-view applications.

100-mm lens

For narrow-field-of-view applications.

200-mm lens

For long-distance applications.

G1x lens

Telops-designed 1X Microscope

G4x lens

4X Microscope
